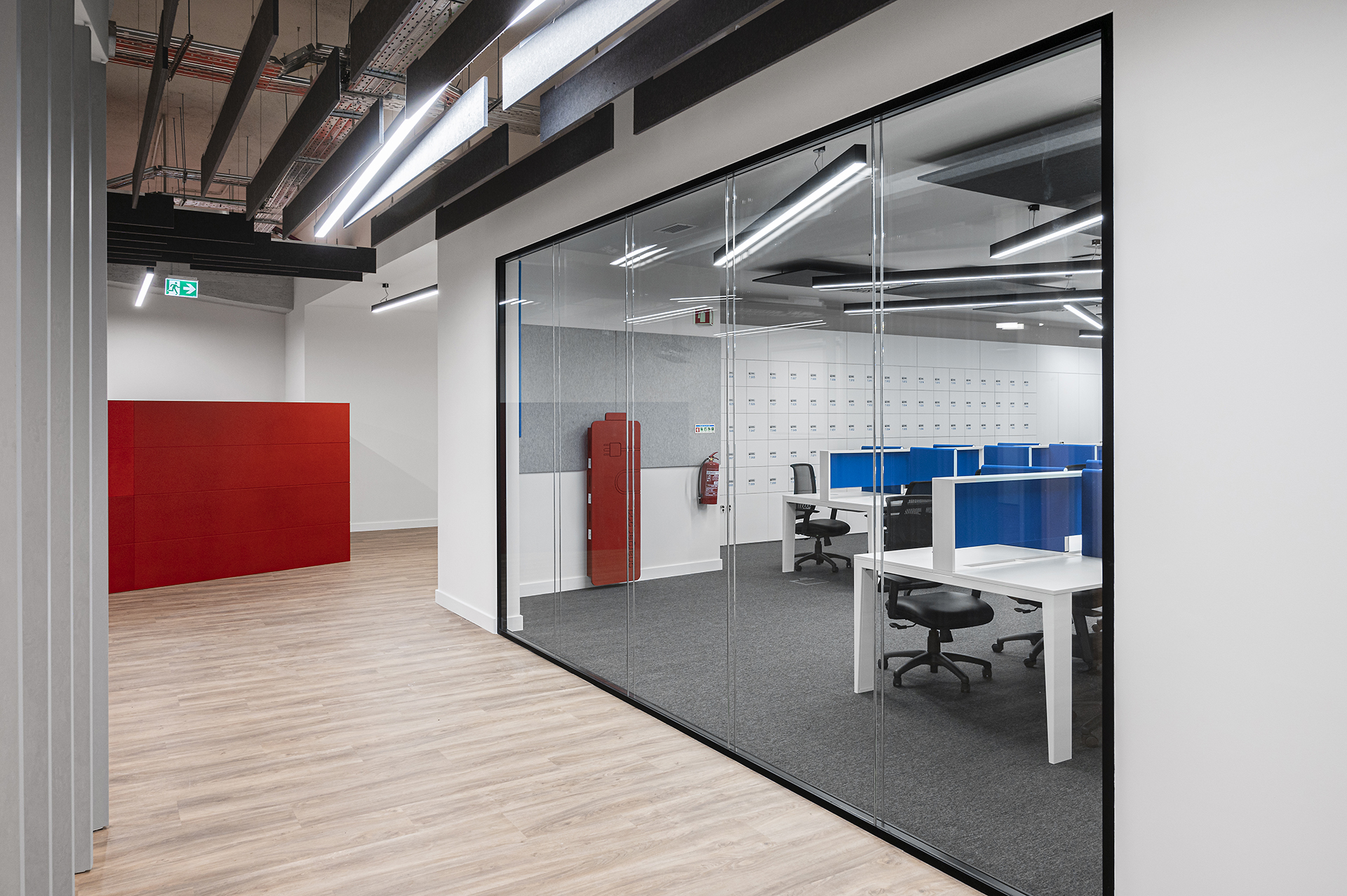

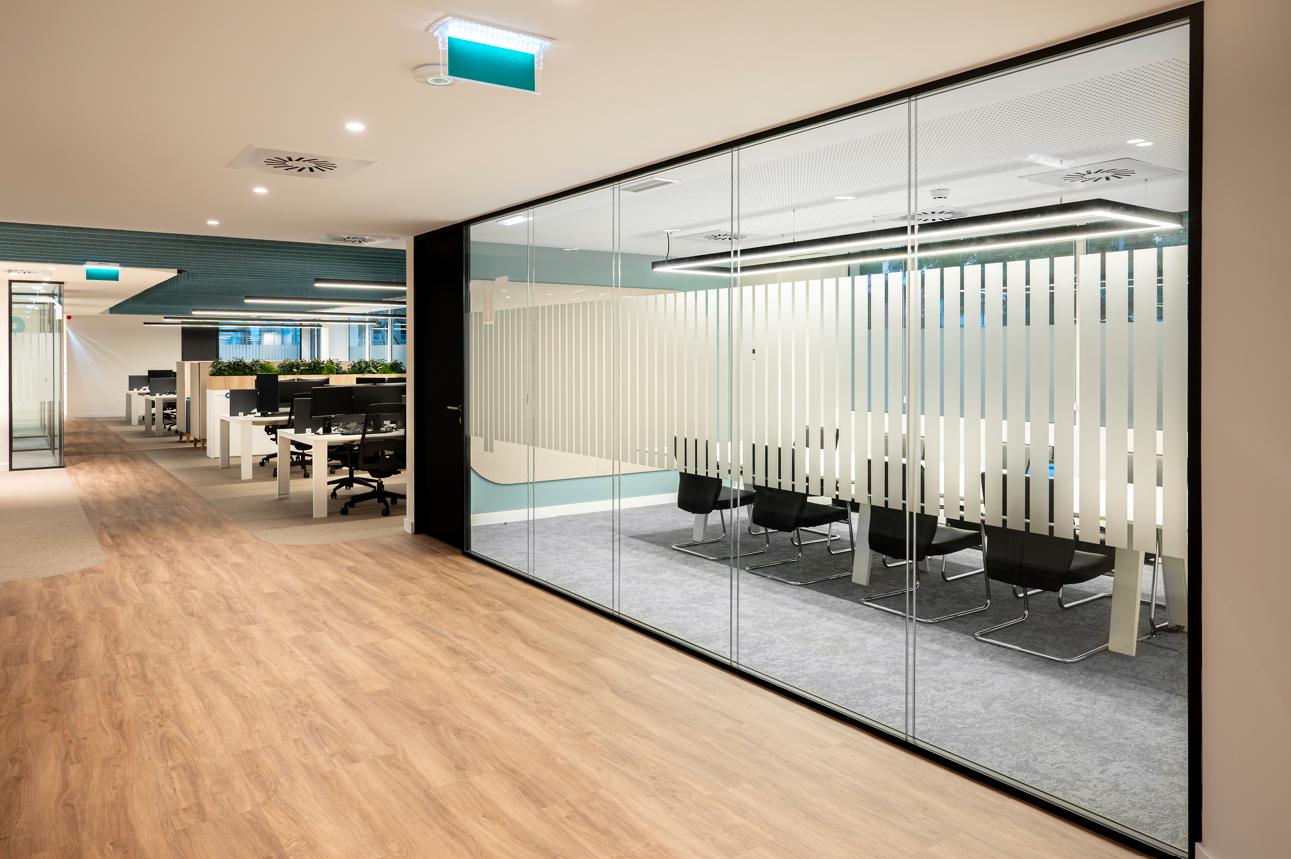

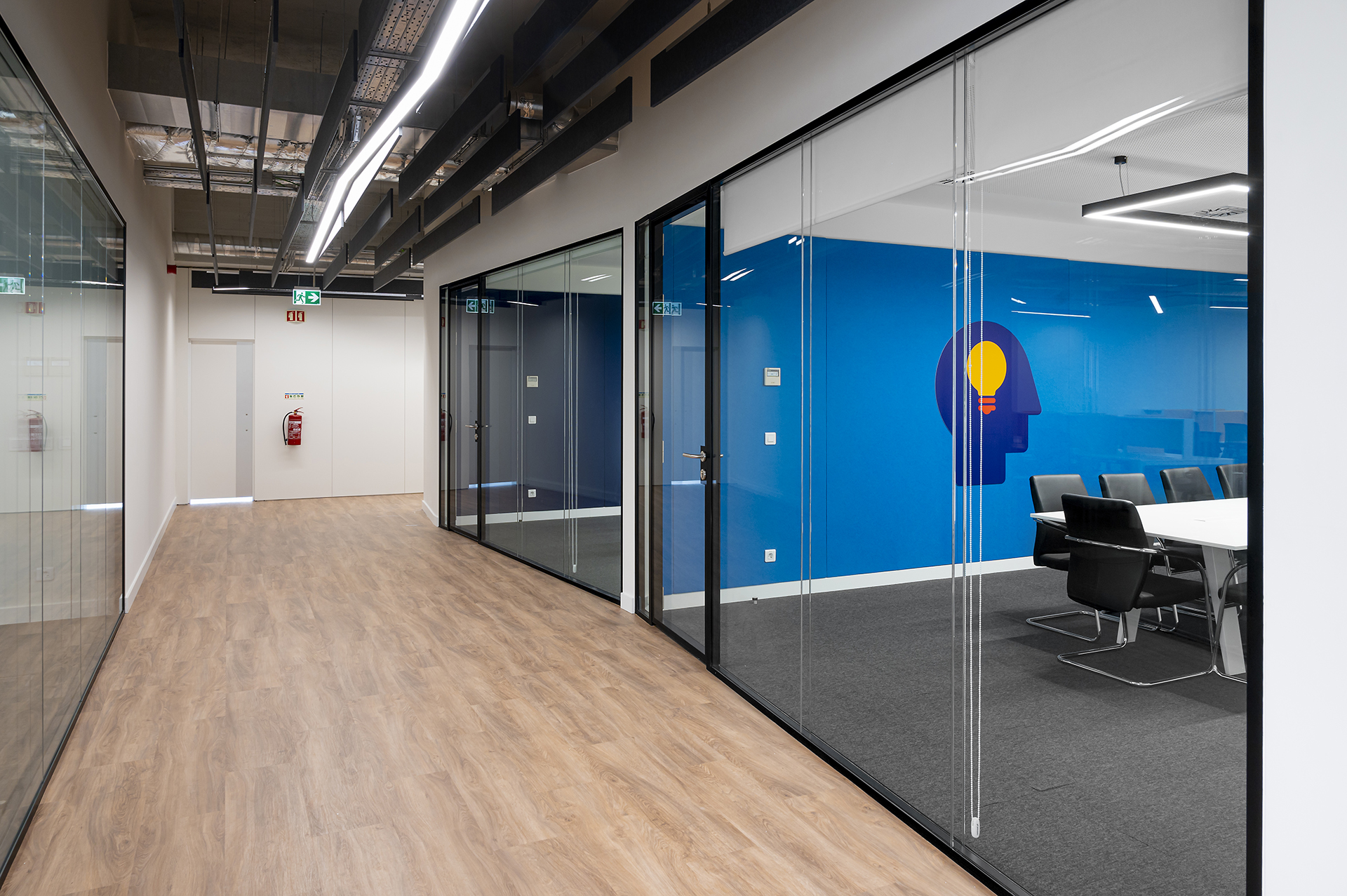

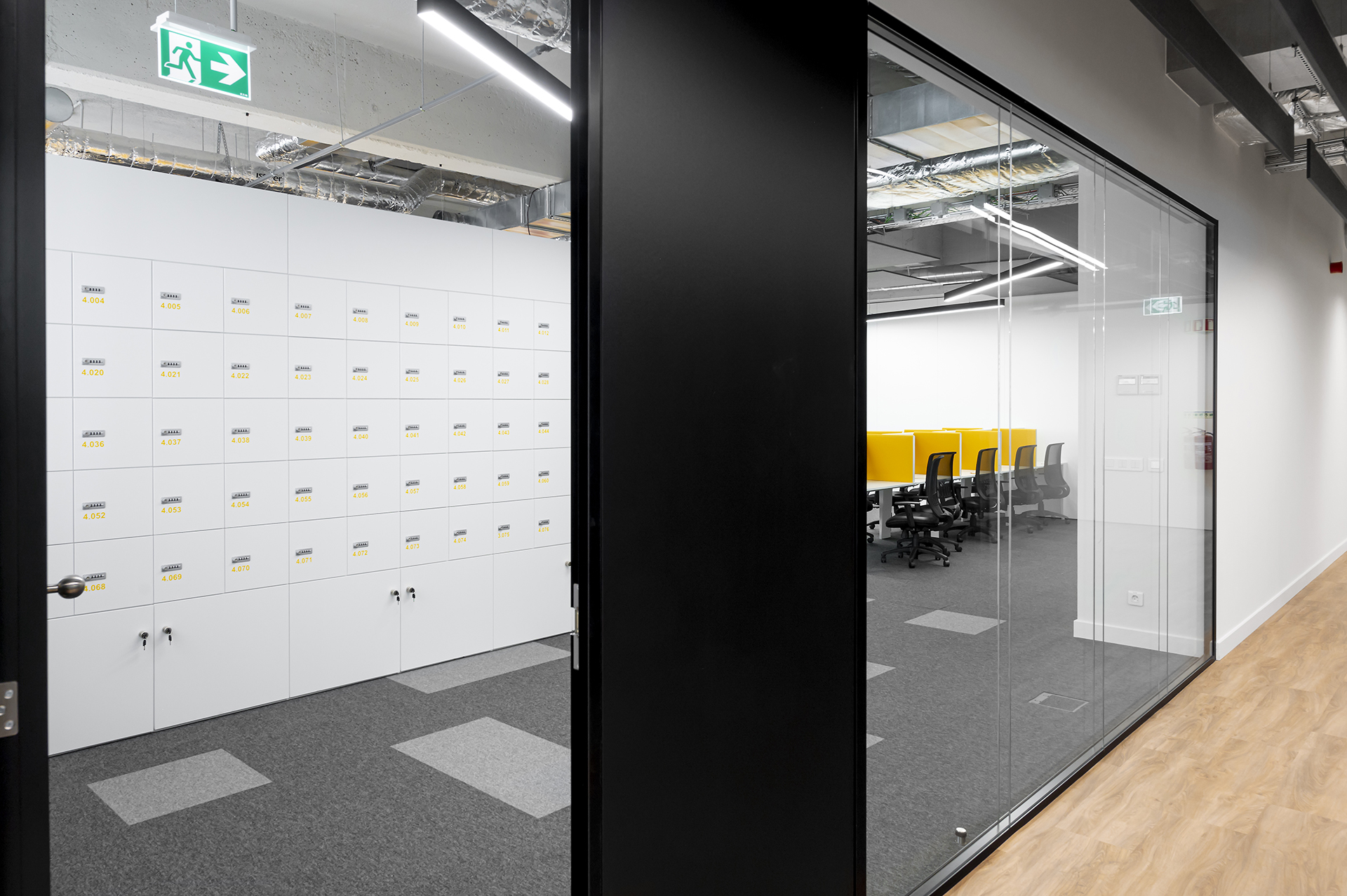

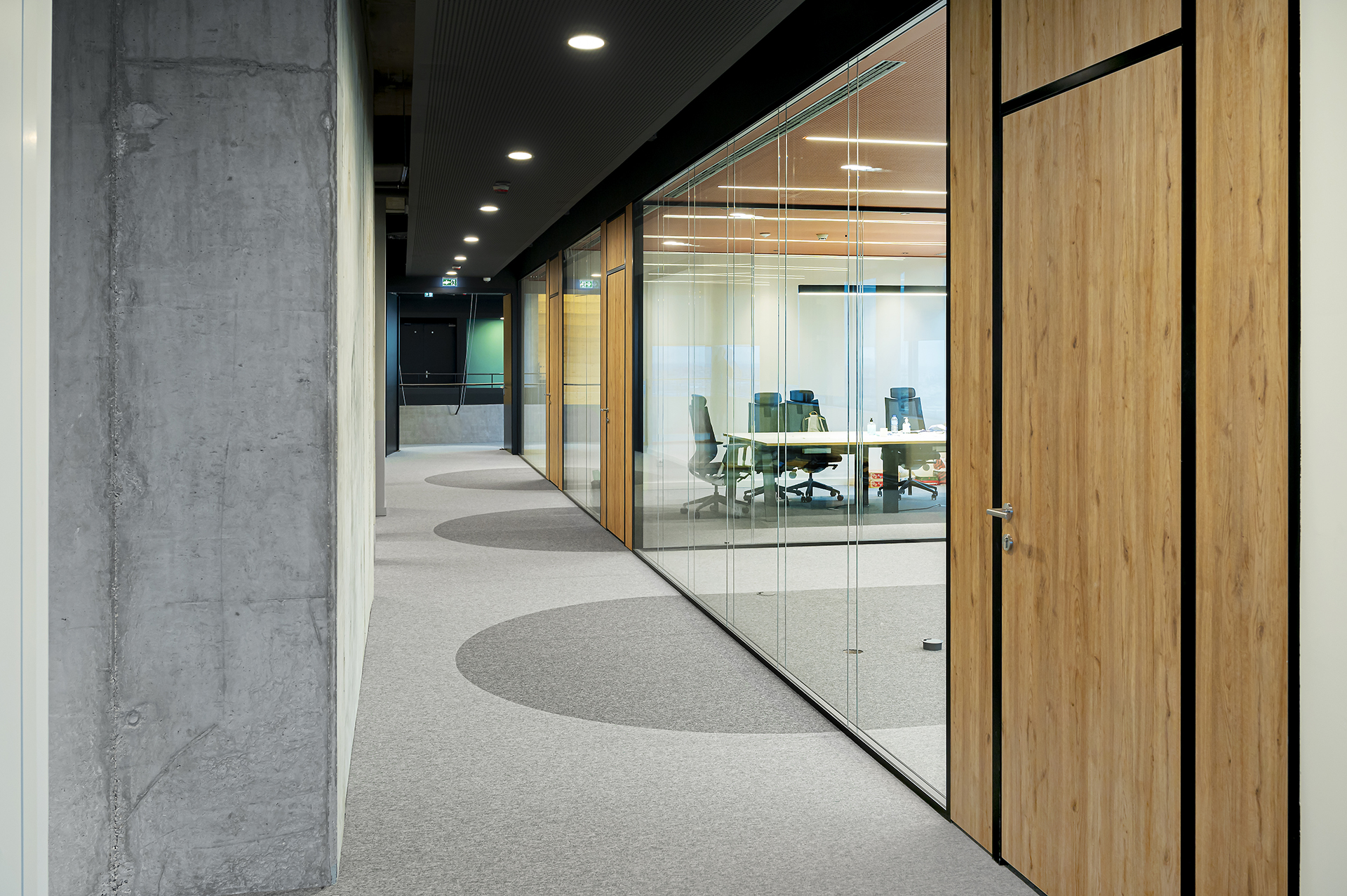

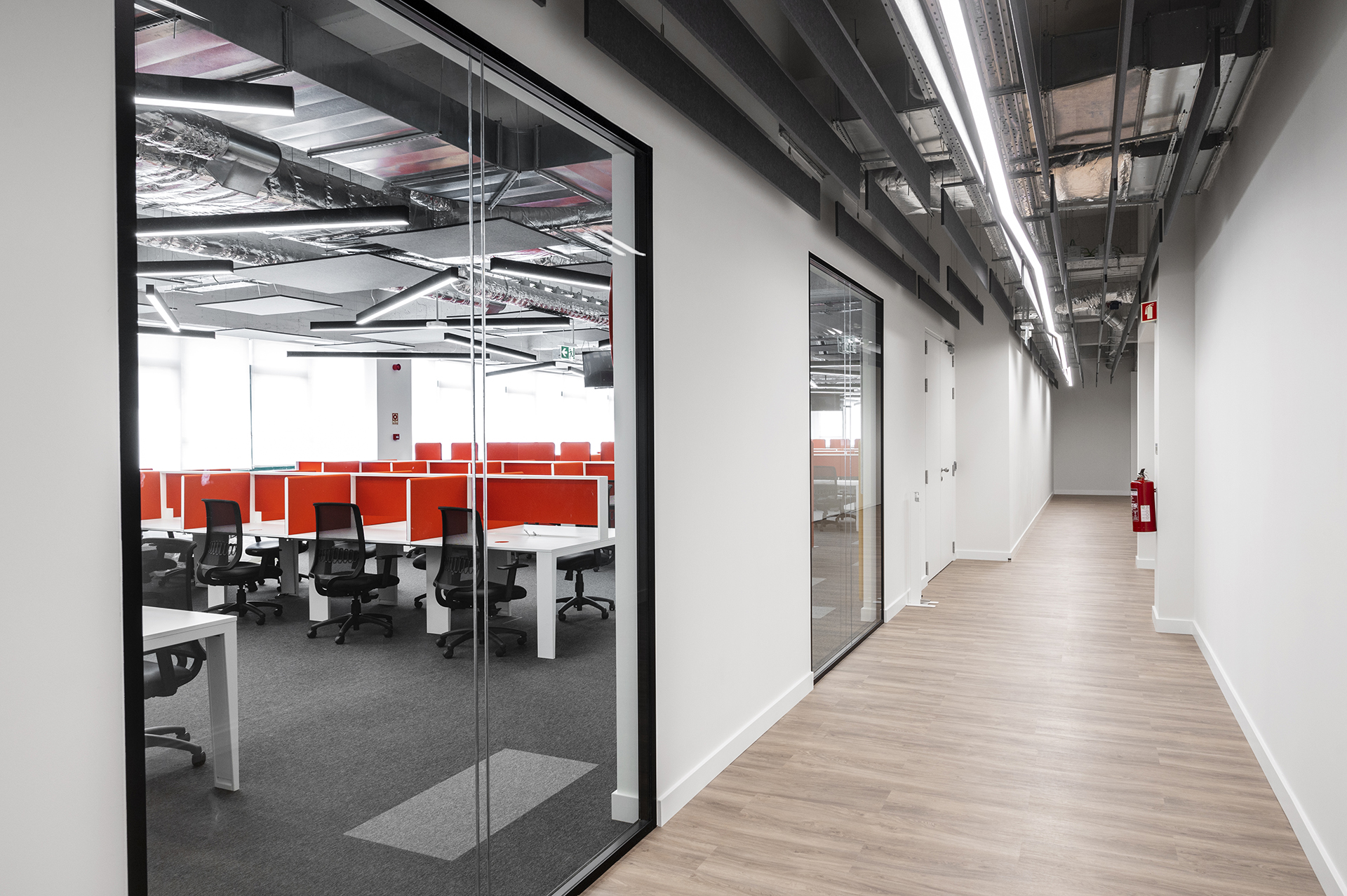

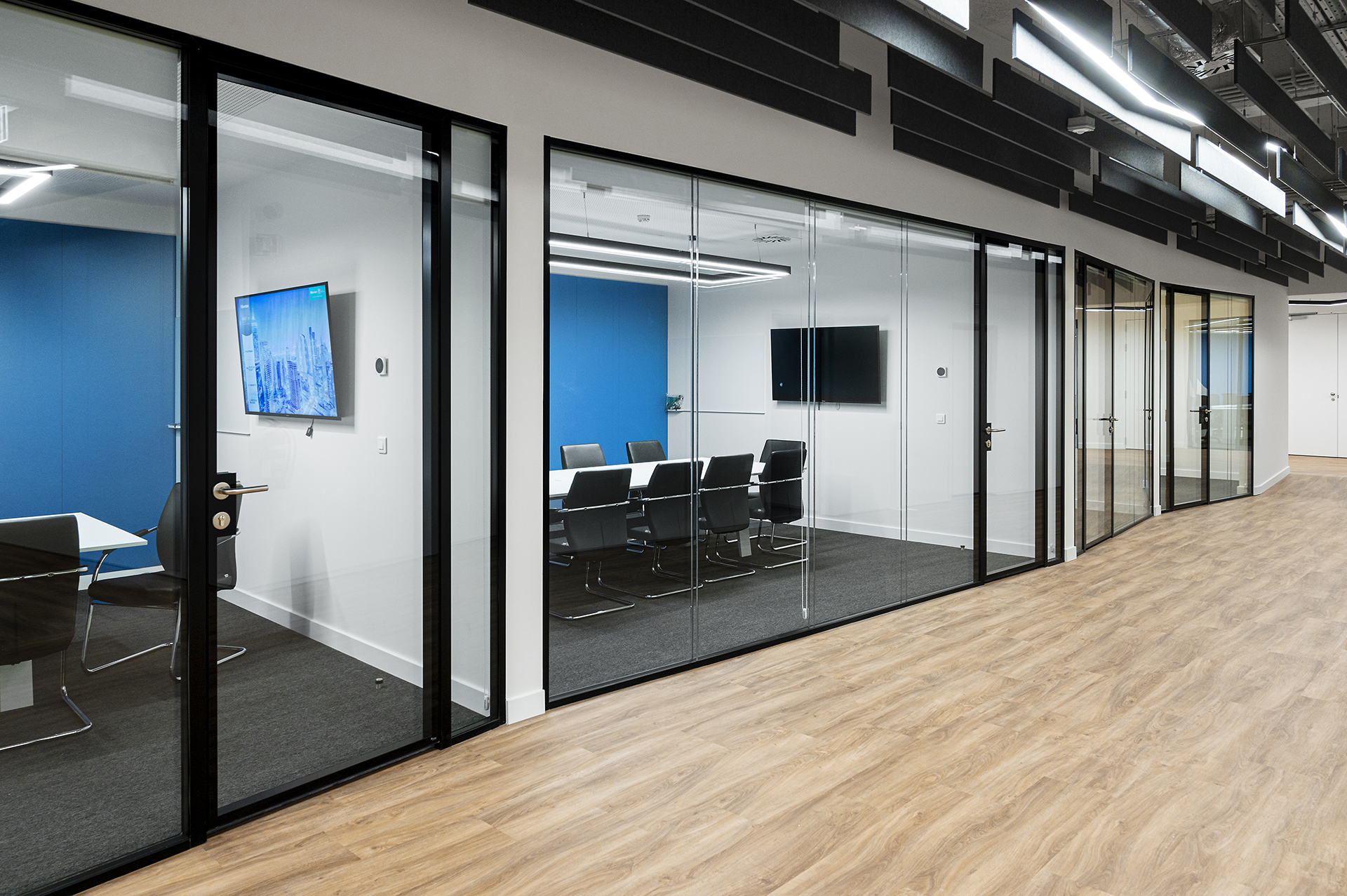

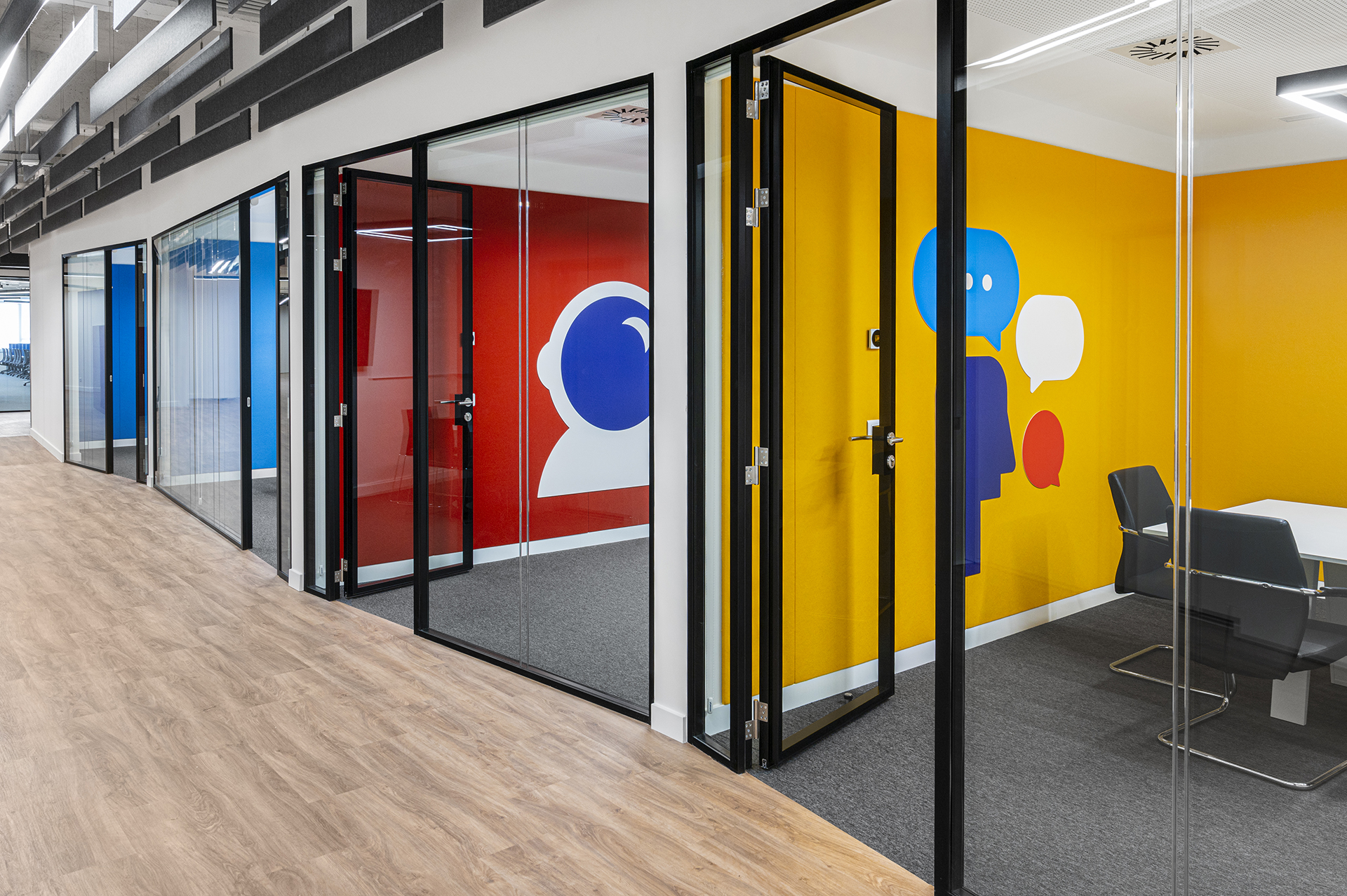

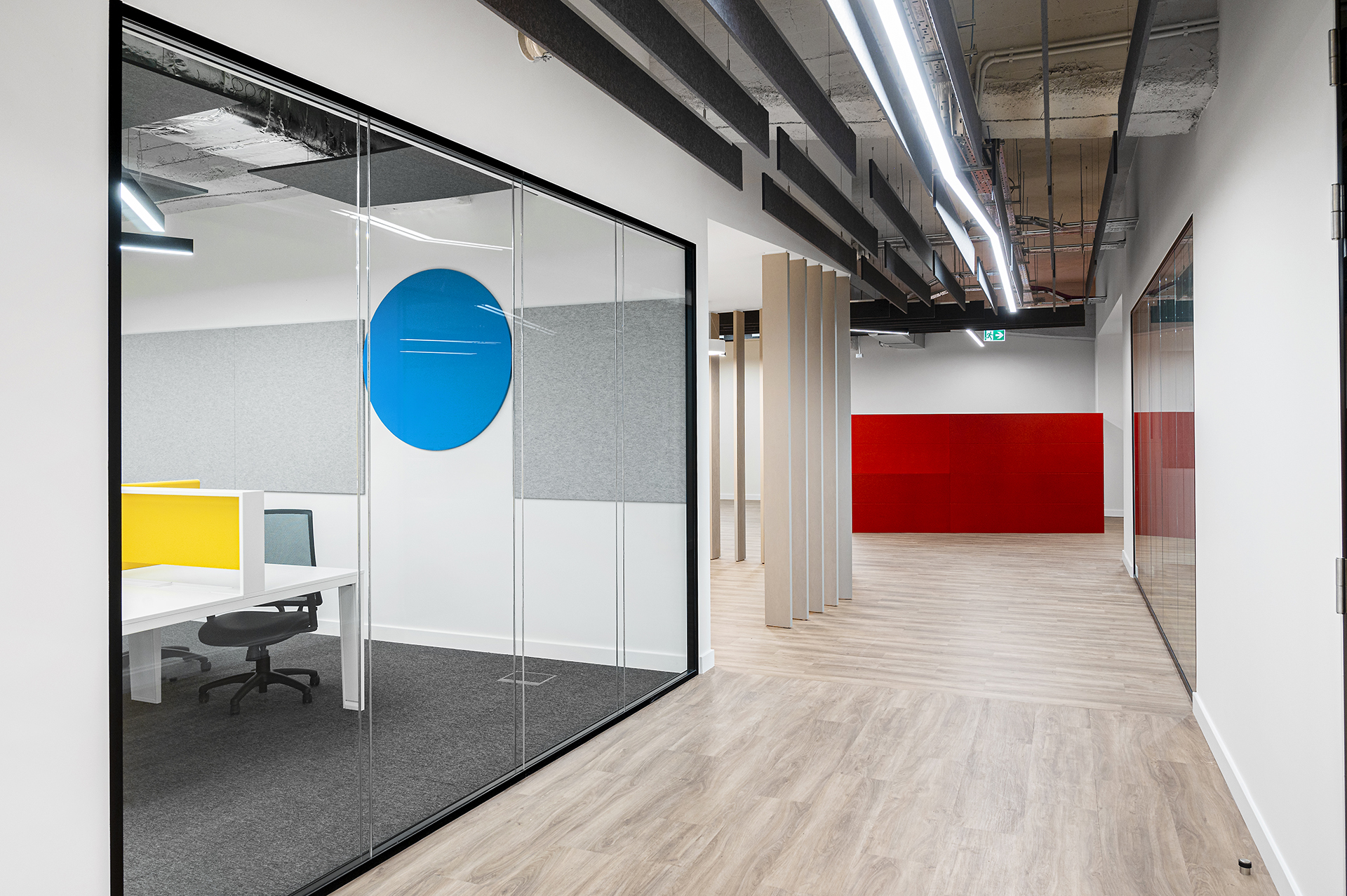

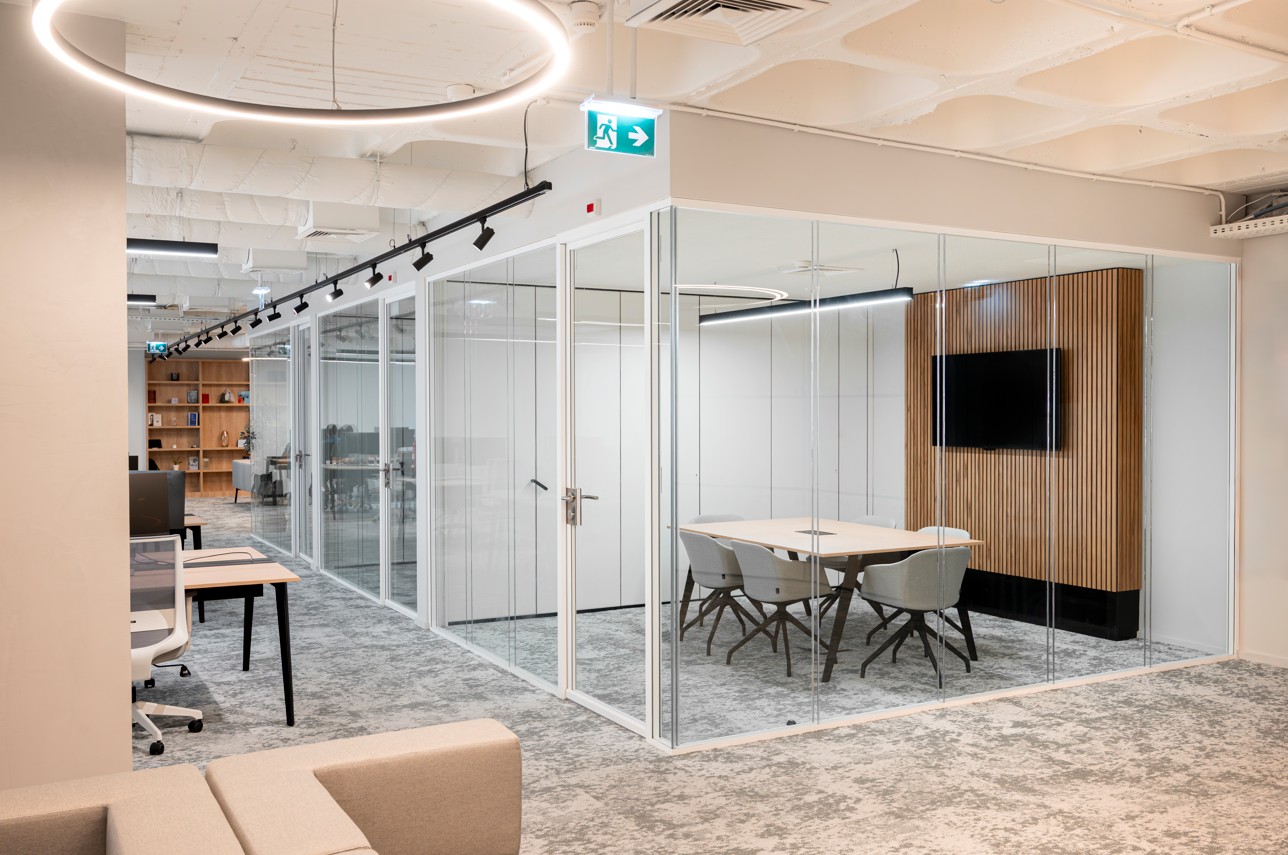

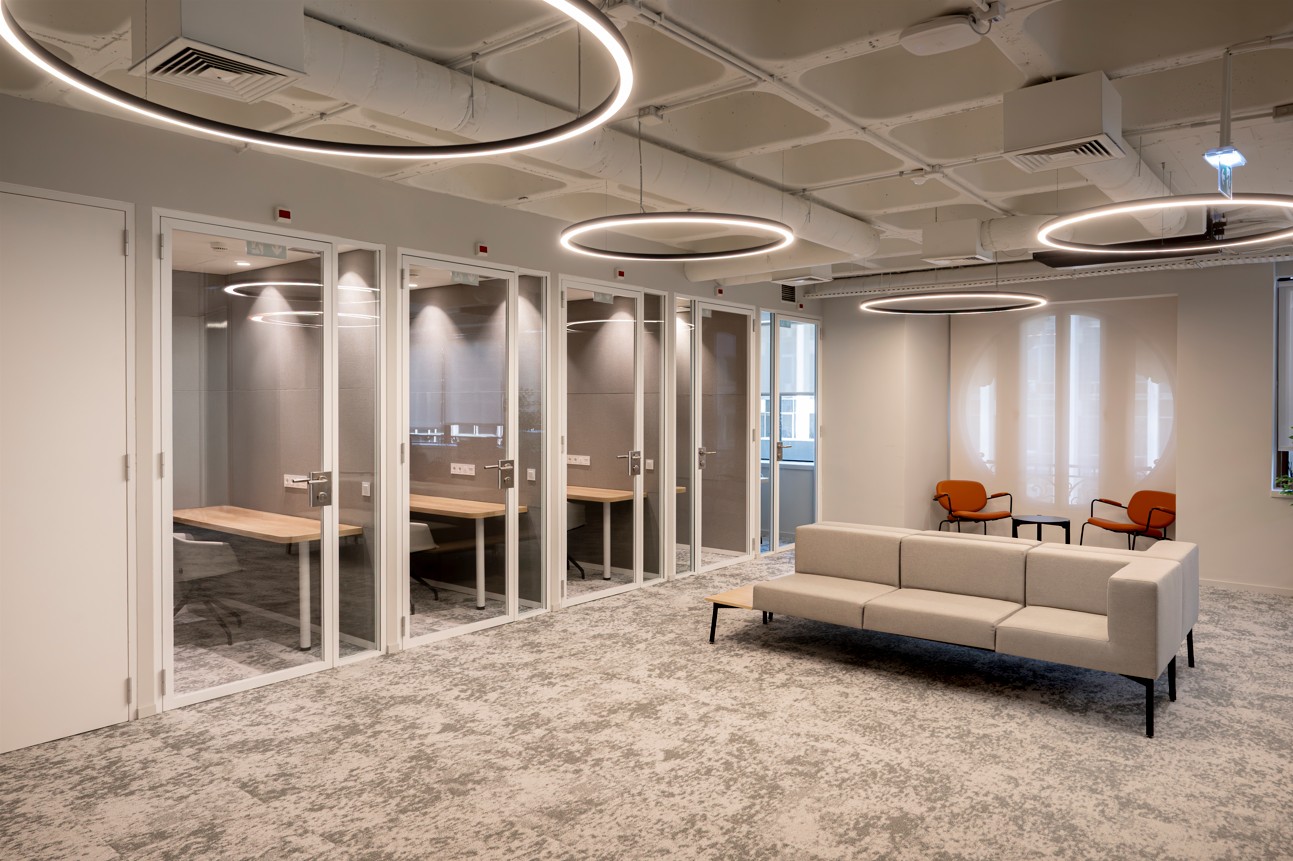

DYAPHANA is a simple and minimalist design partition system. With a clean construction without excess materials, it conveys elegance and softness, ensuring an acoustic index perfectly suited to the requirements of today’s offices.
DOUBLE GLAZING
Aluminium interior structure, with a visible perimeter profile of span: Double glazing 35mm high, 70mm width.
TIPOLOGIES
Double glazing 10+10mm, 10+12mm ou 12+12mm
FINISHES
Aluminium profiles anodized with natural colour or lacquered with RAL standard.
STANDARD ACOUSTIC ISOLATION (DB)
Double Glazing, Reduction of 37 a/to 40dB (Rw).
PURSUANT TO:
EN ISO 10140-1: 2016
EN ISO 10140-2 4: 2010
NP EN ISO 717-1: 2013
Other solutions with higher acoustic isolation are possible under request.
