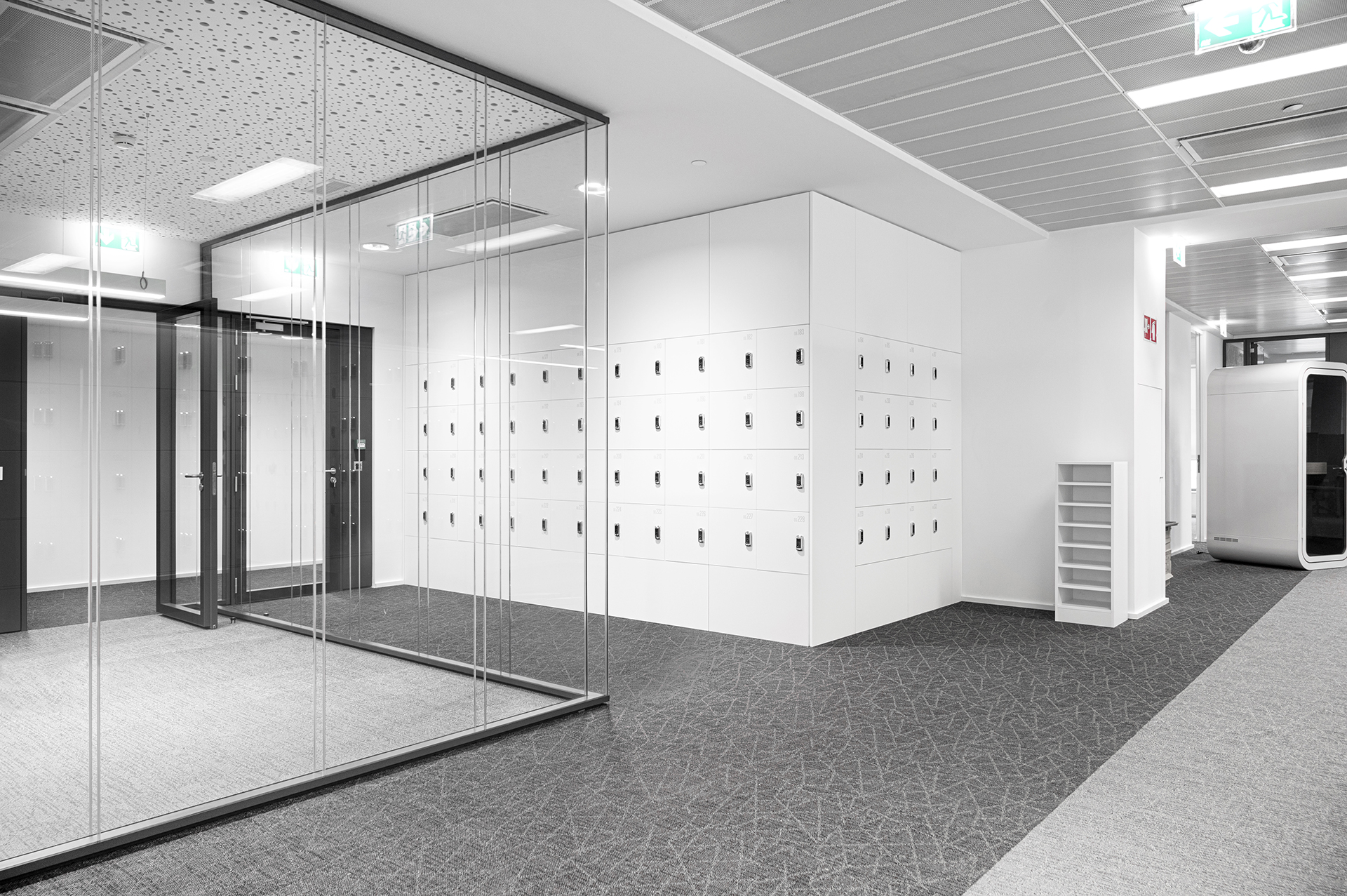

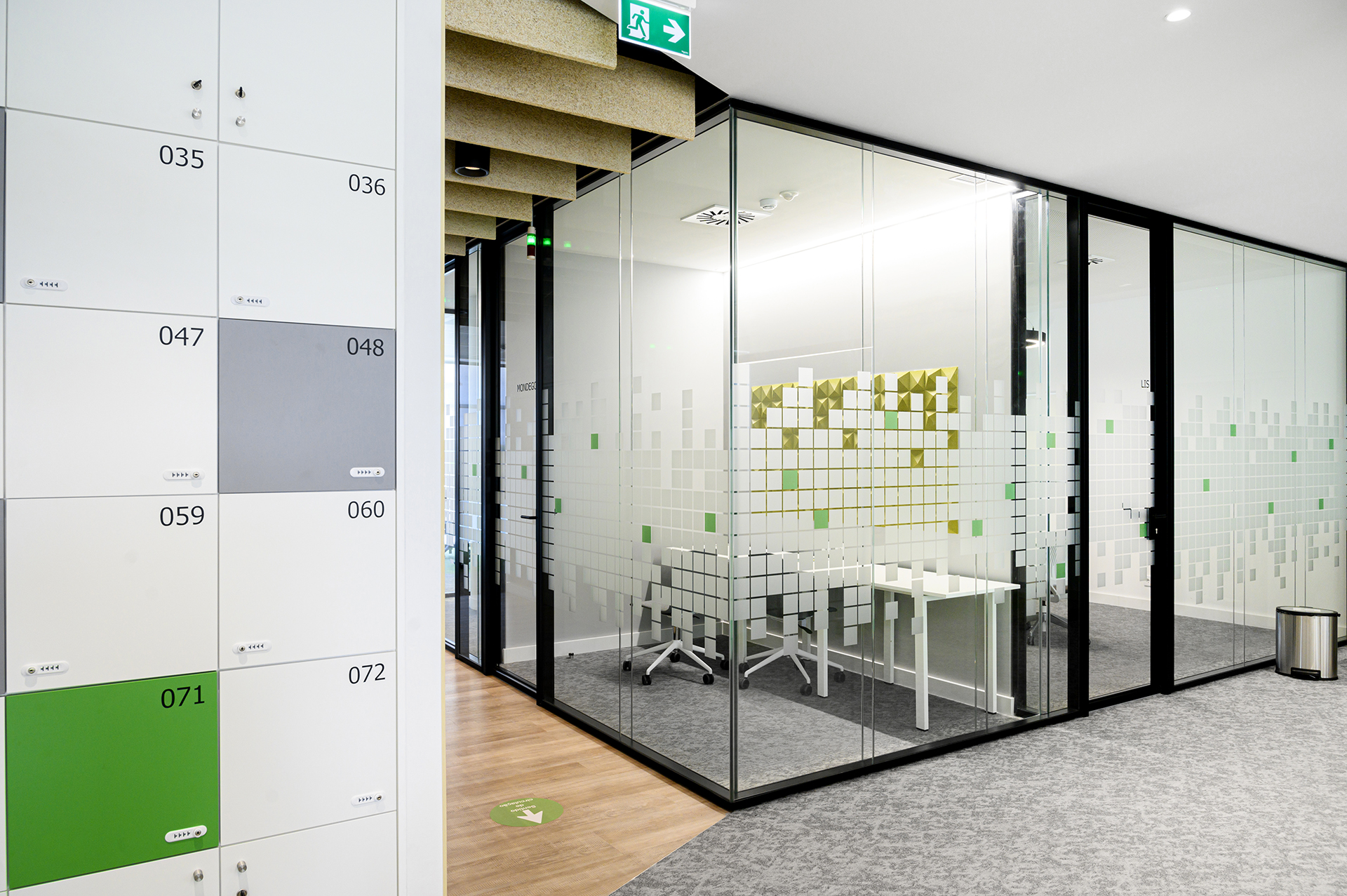

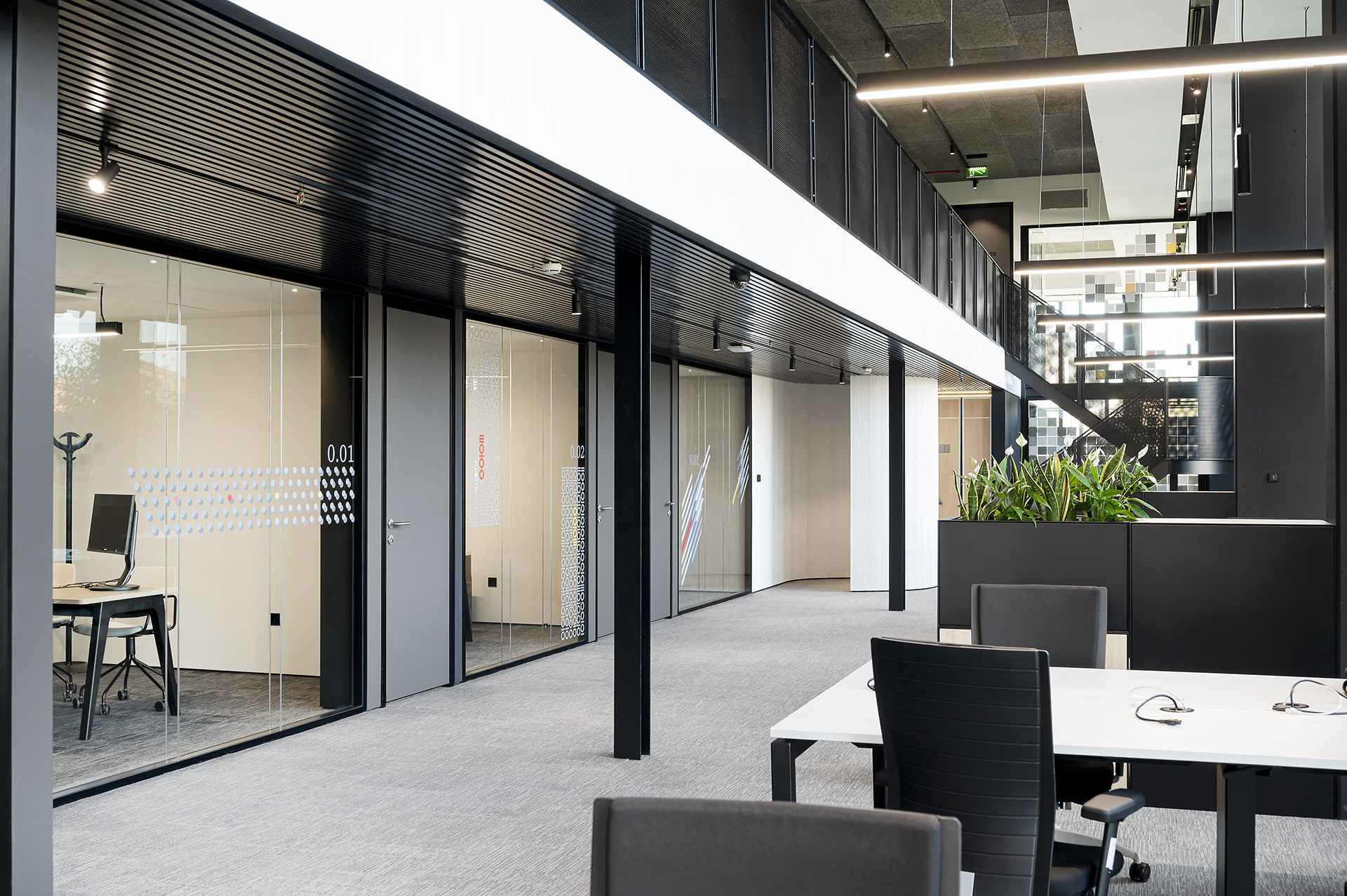

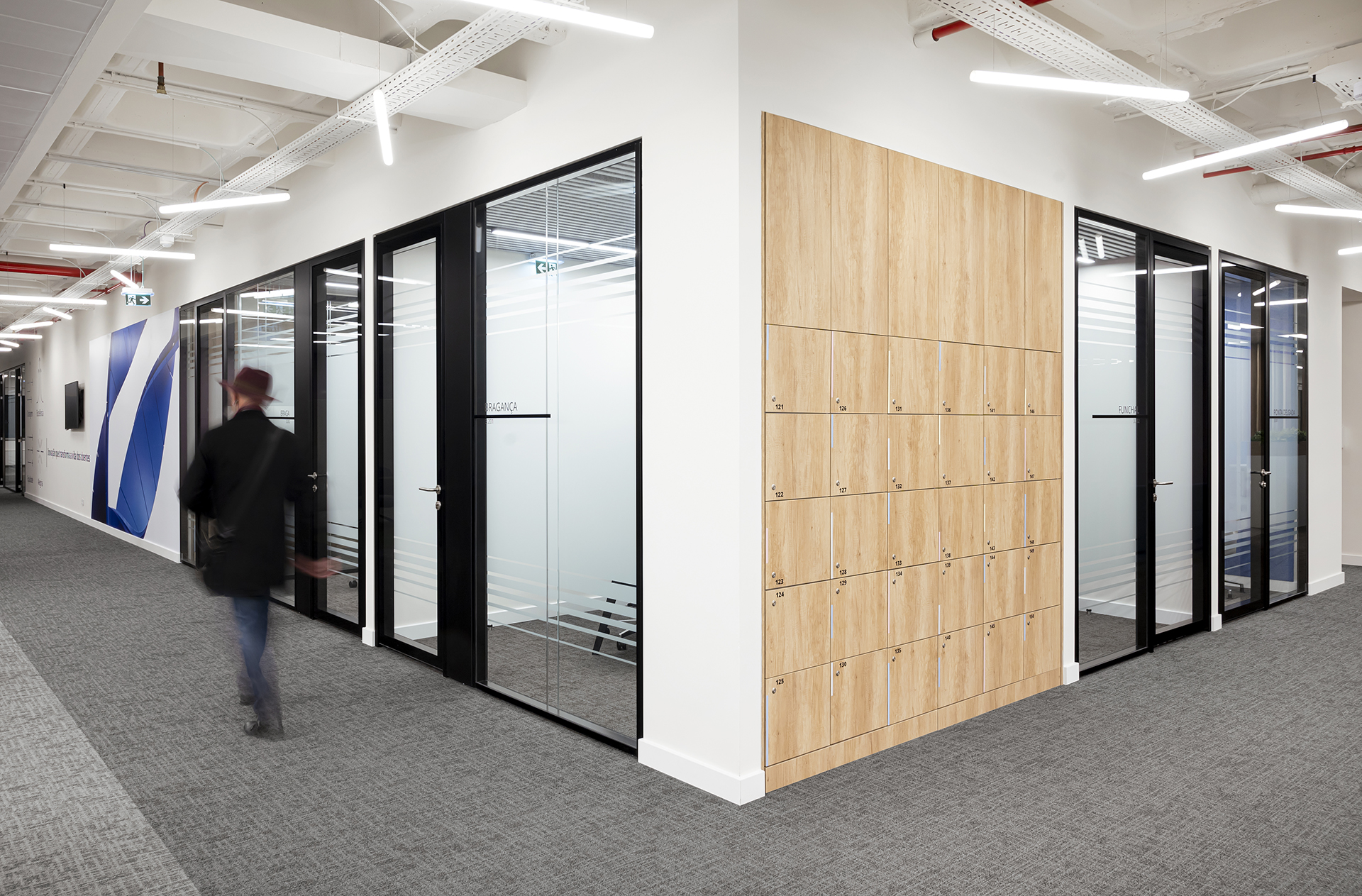

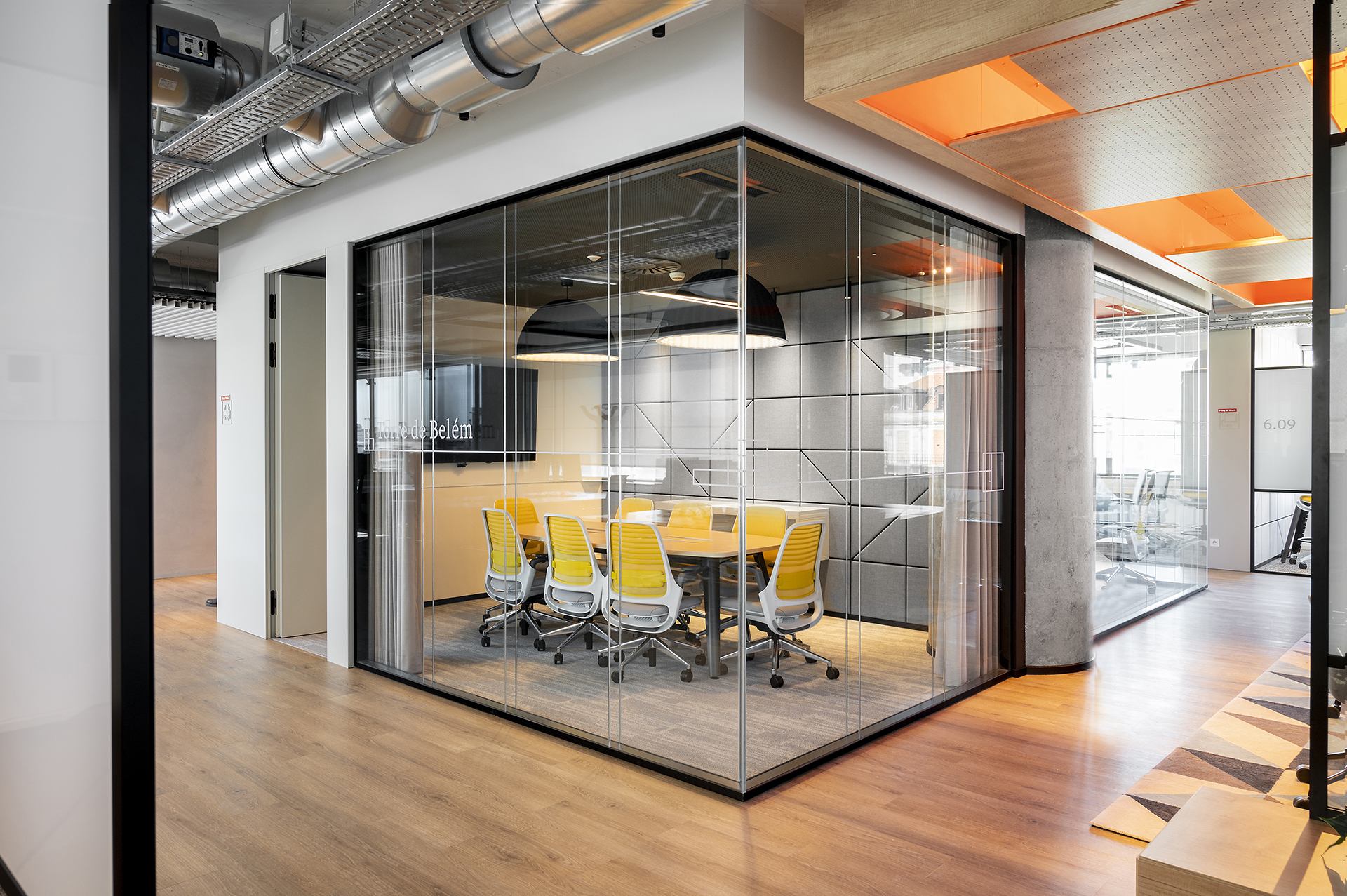

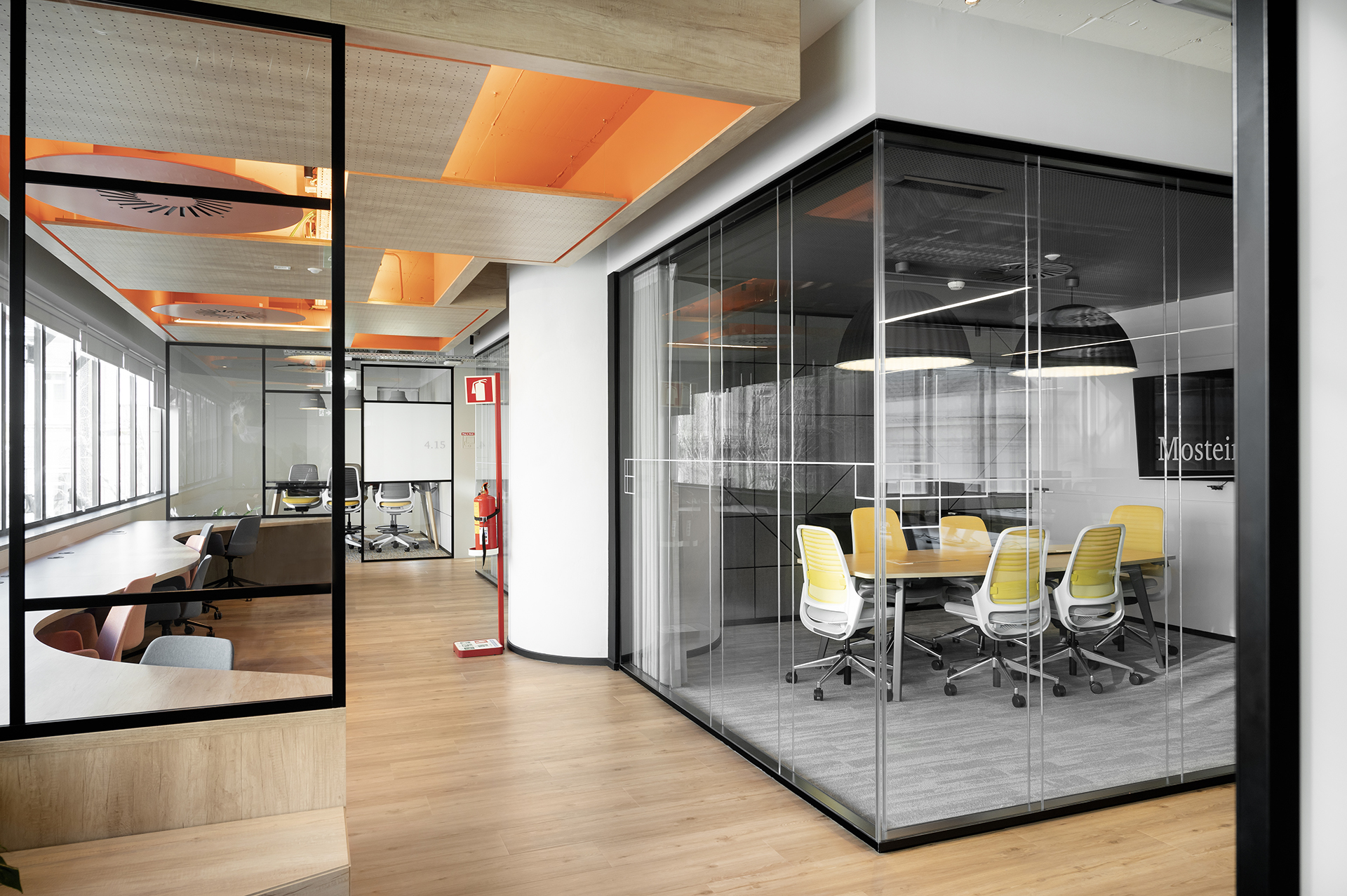

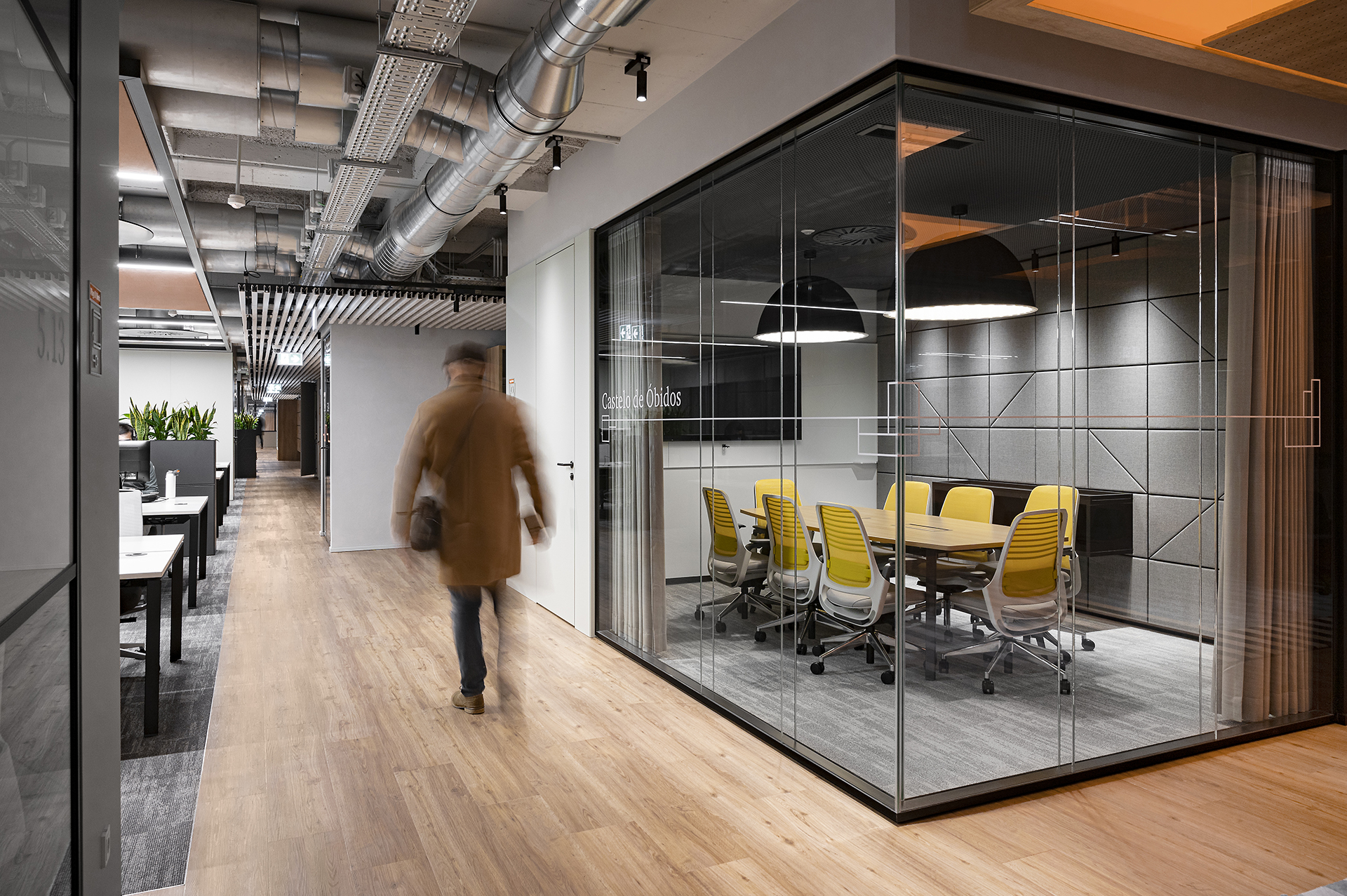

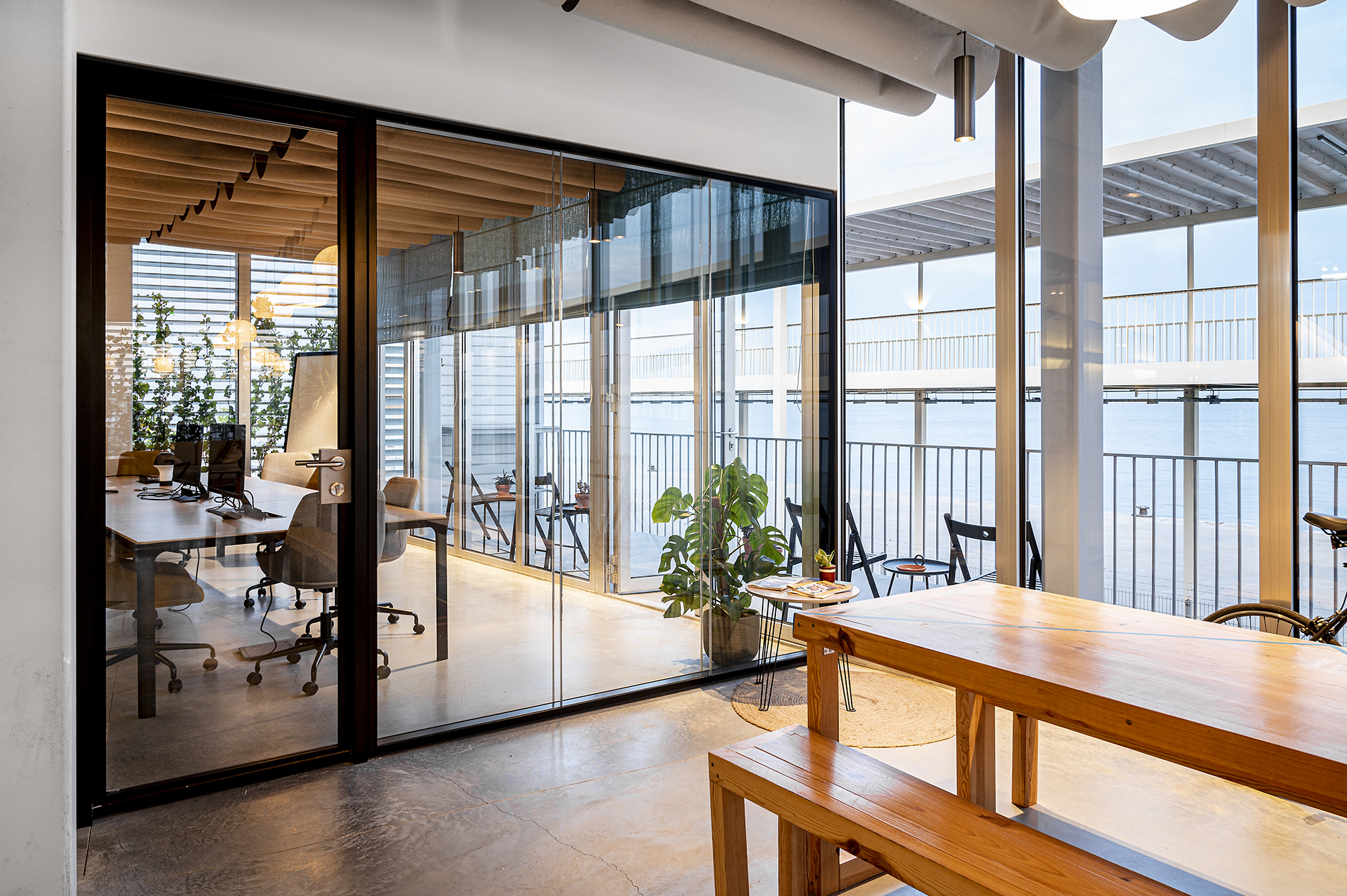

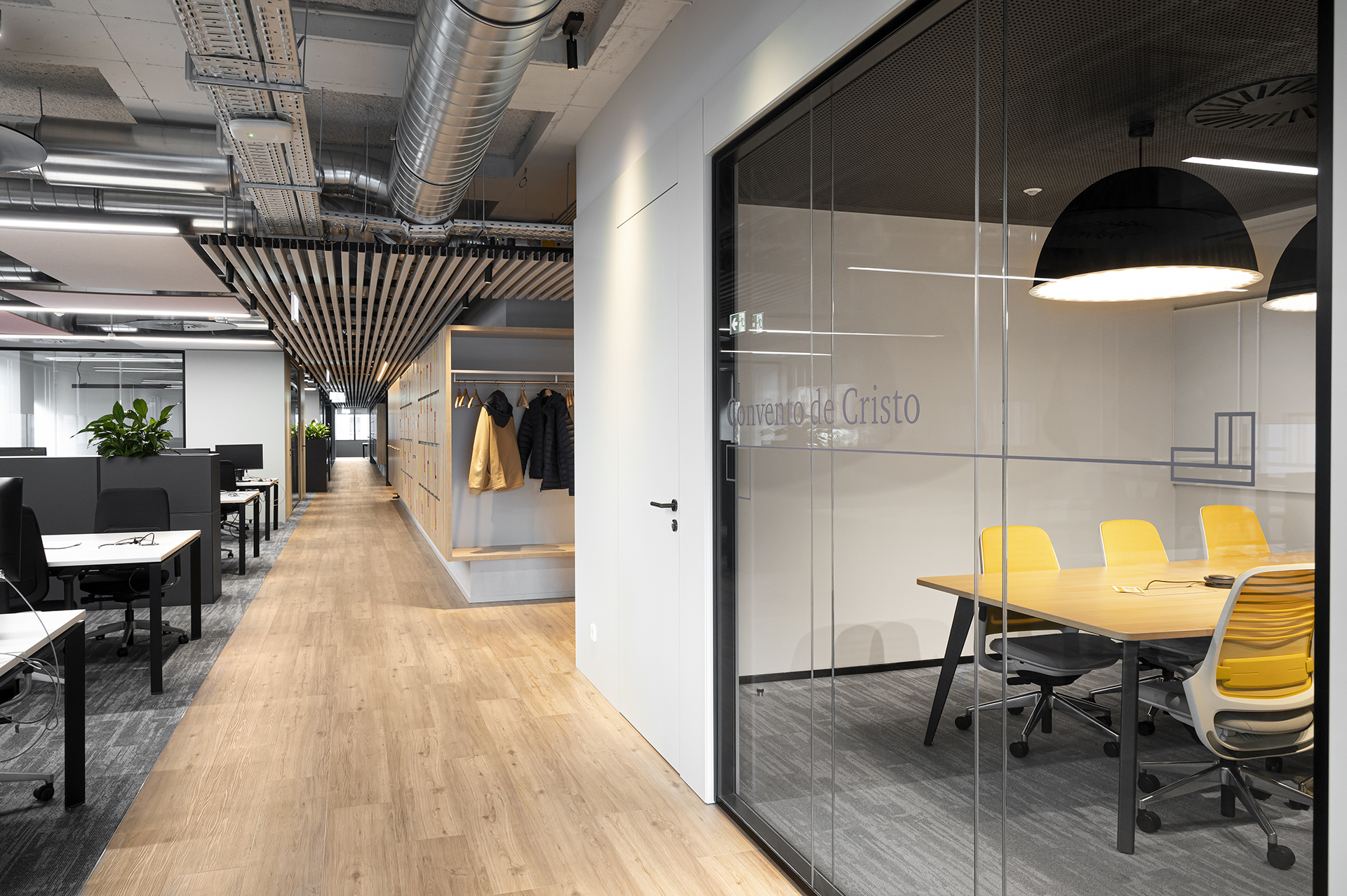

UNNOevo is a simple and elegant design partition system designed to effectively divide and organize contemporary spaces. Having as main element, the continuous glass, promotes the visual continuity, favoring the communication between work spaces and preserving the ambient light.
DOUBLE GLAZING
Aluminium interior structure, with a visible perimeter profile 30mm high, 90mm width.
TIPOLOGIES
Double glazing 10+10mm, 10+12mm ou 12+12mm.
FINISHES
Aluminium profiles anodized with natural colour or lacquered with RAL standard colours.
STANDARD ACOUSTIC ISOLATION (DB)
The doors of one leaves, are made of aluminium frame Double Glazing, Reduction of 39 a/to 43dB (Rw)
PURSUANT TO:
EN ISO 10140-1: 2016
EN ISO 10140-2 4: 2010
NP EN ISO 717-1: 2013
Other solutions with higher acoustic isolation are possible under request.
