UNNOwood is a simple and elegant design partition system designed to effectively divide and organize contemporary spaces. Having as main element, the continuous glass, promotes the visual continuity, favoring the communication between work spaces and preserving the ambient light.

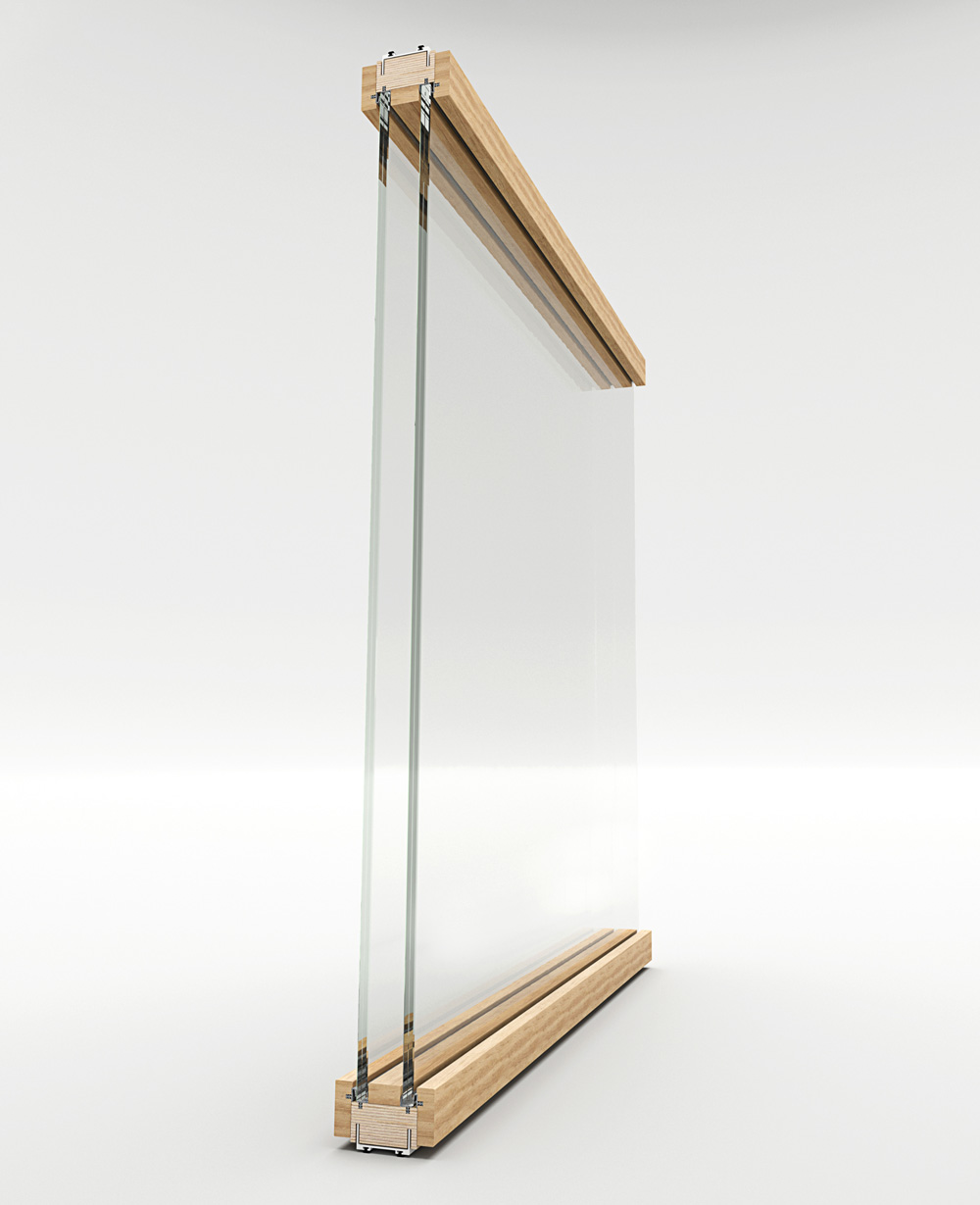

DOUBLE GLAZING
Upper and lower profile in aluminium, plywood core and capping in solid American Oak wood, with visible perimeter frame 45mm high, 90mm.
TIPOLOGIES
Double glazing 10+10mm, 10+12mm ou 12+12mm.
FINISHES
American oak wood and/or aluminum profiles anodised in natural color or lacquered in standard RAL colours.
STANDARD ACOUSTIC ISOLATION (DB)
Double Glazing, Reduction of 39 a/to 43dB (Rw) **
PURSUANT TO:
EN ISO 10140-1: 2016
EN ISO 10140-2 4: 2010
NP EN ISO 717-1: 2013
** Indicative value, based on tests obtained in the UNNOevo system.
Other solutions with higher acoustic isolation are possible under request.
