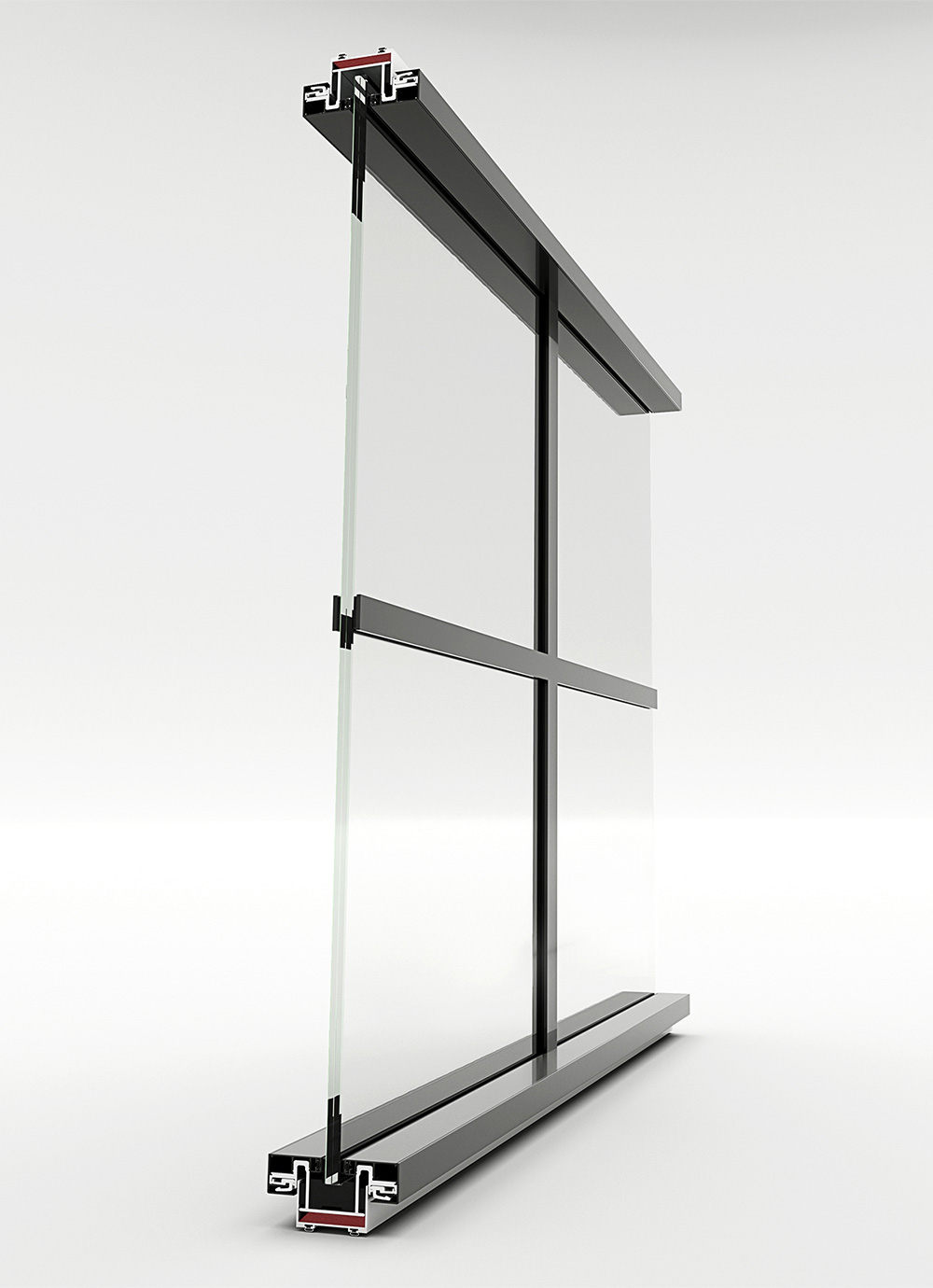

UNNOevo Frame is a simple and elegant design partition system designed to effectively divide and organize contemporary spaces. Having as main element, the continuous glass, promotes the visual continuity, favoring the communication between work spaces and preserving the ambient light.
SINGLE GLASS
Aluminium interior structure, with a visible perimeter profile 30mm high, 90mm width Single glass 30mm high, 90mm width. Grid: Grid Cells through 30x3mm aluminium bars.
TIPOLOGIES
Single glass 10/12mm
FINISHES
Aluminium profiles anodized with natural colour or lacquered with RAL standard colours.
STANDARD ACOUSTIC ISOLATION (DB)
Single Glass, Reduction of 34 a/to 38dB (Rw).**
PURSUANT TO:
EN ISO 10140-1: 2016
EN ISO 10140-2 4: 2010
NP EN ISO 717-1: 2013
** Indicative value, based on tests obtained in the UNNOevo system.
Other solutions with higher acoustic isolation are possible under request.
